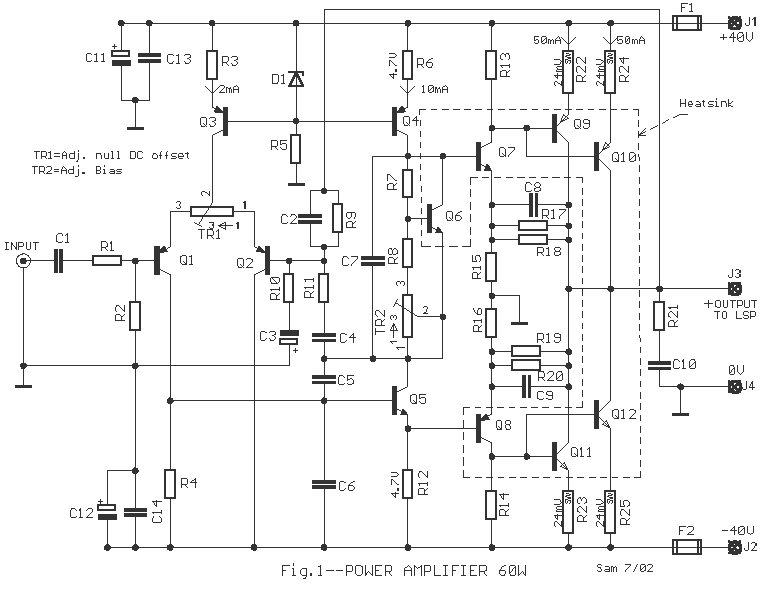

Simple Power amplifier 50W in 8 0hm [2]


  Στο κύκλωμα υπάρχει ένας απλός ενισχυτής ισχύος 60W στα 8Ω και 80W στα 4Ω, με υλικά που σίγουρα υπάρχουν σε μεγάλες ποσότητες. Μπορει να χρησιμοποιηθεί σε συστήματα οικιακού κινηματογράφου ή σε άλλες χρήσεις. Σχεδιαστικά δεν έχει κάτι πρωτότυπο. Με το TR1 ρυθμίζουμε την συνεχή τάση στην έξοδο του ενισχυτή σε χαμηλά επίπεδα [± 20 έως ± 50mV είναι ένα καλο επίπεδο]. Καλο επίσης είναι τα δυο τρανζίστορ Q1-2 του διαφορικού ενισχυτή, να έχουν ταιριασμένα χαρακτηριστικά. Με το TR2 ρυθμίζουμε το ρεύμα ηρεμίας των τρανζίστορ του σταδίου εξόδου στα 50mA περίπου για κάθε κλάδο. Η ρύθμιση αυτή γίνεται χωρίς να υπάρχει σήμα στην είσοδο, τοποθετούμε ένα πολύμετρο στα άκρα μιας των αντιστάσεων R22-23-24-25 και ρυθμίζοντας το TR2 πρέπει να έχουμε ένδειξη περίπου 25mV DC, που αντιστοιχεί σε ρεύμα 50mA. Αφήνουμε τον ενισχυτή να δουλέψει για λίγη ώρα και εάν χρειαστει ρυθμίζουμε ξανά. Τα τρανζίστορ Q6 έως Q12, πρέπει να τοποθετηθούν επάνω σε μια καλή ψήκτρα, με προσοχή ώστε να μονωθούν καλά από την ψήκτρα και τις βίδες στήριξης.


  In the circuit exist a simple power amplifier 60W in the 8R and 80W in the 4R, with components that sure exist in big quantities. It can be used in home cinema systems or in other uses. With the TR1 we regulate the DC voltage in the output of amplifier in low levels [± 20 until ± 50mV it is a good level]. Good also they are the two transistors Q1-2 of differential amplifier, they have matched characteristically. With the TR2 trimmer we regulate the transistors bias current of output power stage, in 50mA roughly for each sector. This regulation become without exist signal in the input, place a digital multimeter in terminal since of the resistors R22-23-24-25 and regulating him TR2 should we have clue, roughly 25mV DC, that corresponds in current 50mA. We leave the amplifier to work for few hour and if it needs we regulate again. Transistors Q6 until Q12, should be placed on a good heatsink, with attention so that insulation well from the heatsink and the support screws.

R1=1K5 R17-18-19-20=220R 1W C11-12=220uF 63V
R2-9=10K R21=10R 1W D1=5V6 0.4W zener
R3=2K7 TR1=100R trimmer Q1-2-3=BC557
R4=5K6 TR2=470R trimmer Q4-8=BD140
R5=3K3 C1=2.2uF 100V MKT Q5-7=BD139
R6-12=470R C2=330pF Q6=BC549
R7-11=1K2 C3=100uF 16V Q9-10=TIP2955 [MJE2955]
R8=560R C4=100pF Q11-12=TIP3055 [MJ3055]
R10=220R C5=27pF F1-2= 3A slow Fuse 5X20mm
R13-14=47R C6=3.3nF 100V MKT All resistors is 1/2W 1% metal film except for announce differently
R15-16=33R 1W C7-8-9-10-13-14=100nF 100V MKT



Sam Electronic Circuits 7/02
