Phoenix interface

Phoenix interface

phoenix.bmp - PCB of the Phoenix interface
phoenixo.bmp - layout of components of the Phoenix interface
phoenix.pdf - PCB ready to be printed. Thanks to Nikola Atanasovski.

It is an interface used for communication a PC with a smartcard (original as well as pirate). The Phoenix interface can also be used to update the EEPROM 24(L)C16 on the Multimac II cards (gold wafer cards). This interface require a separate power supply (9 - 30V). Connection with the PC serial port is made by cable 1-1, 9pin connectors, male-female.

Basic schematic diagram:


              +-------------+  +
  +-----------|1     V    16|---+---o +5V (VCC)
 +|          +|             |  ===
 === +5V o-||-|2  MAX232  15|---+---o GND
  |           |             |
  +-----------|3      +---14|-               +5V (VCC)  +-<-o DTR
           +  |       |     |                   o       |
     +---||---|4      | +-13|----o RTS          |       +->-o DSR
     |        |       | v   |                   /       |
     +--------|5      | +-12|----o RST          \ 22K   +->-o CTS
          +   |       |     |                   /
     GND o-||-|6      +-<-11|-                  \
              |             |                   |
     RxD o----|7  ---<--- 10|-------------------+----o I/O
              |             |              |\   |
     TxD o----|8  --->---  9|--------------| |--+
              +-------------+             1|/ 2
                                          74LS07
    At the MAX232, pin 2 delivers
    +10 V and pin 6 delivers -10 V.        74LS07
                                           pin 7=GND, pin 14=VCC



     1M         2.2k        3|\4
  +-/\/\/--+----/\/\/-----+--| o-----+-------------o CLK
  |        |2             |  |/      |
  |       -o-             |          |100 pF
  |     /_____\           |         ===
  |        |1             |          |
  |        | 3.579545 MHz |          |
  |        |     +--+     |          -      74HC04
  +--------+---| |  | |---+         GND     pin 5,7,9,11,13=GND,
           |     +--+     |                 pin 14=VCC=+5 V
           |27pF          |27pF
          ===            ===
           |              |
           -              -
          GND            GND

List of components:

  1 x slot for ISO card (eight pins are enough)
  1 x female 9pin connector RS232
  1 x MAX232
  1 x 7805 (78L05)
  1 x 74LS07 (7407)
  1 x 74HC04
  1 x LED green
  1 x LED red
  5 x capacitor 4u7/16V (2u2-22u/16-63V)
  1 x capacitor 100nF
  1 x capacitor 100pF
  2 x capacitor 27pF
  2 x resistor 220R
  2 x resistor 2K2
  1 x resistor 22K
  1 x resistor 1M0
  1 x crystal 3.579545 MHz (It is recommended to add a socket for the crystal in order to easily change it)

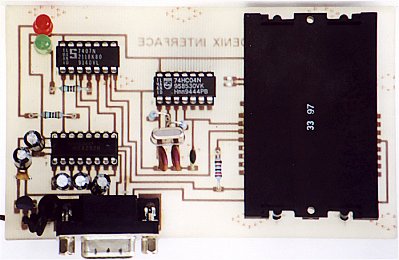

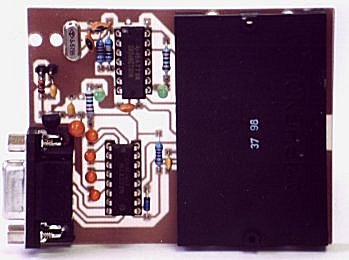

Some images:
