12 Volt 10 Amp Dark Activated Switch

Konusu 'Elektronik Devreler' forumundadır ve guclusat tarafından 21 Şubat 2013 başlatılmıştır.

  1. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.756
    Ödül Puanları:
    48

    [​IMG]


    Specifications

    Supply voltage: 12V (nominal).
    Maximum lamp control current: 10A at 12V.
    Day/Night battery current drain (off): < 10 microamps
    Day battery current drain (auto): 5mA @ 12.8V

    Theory

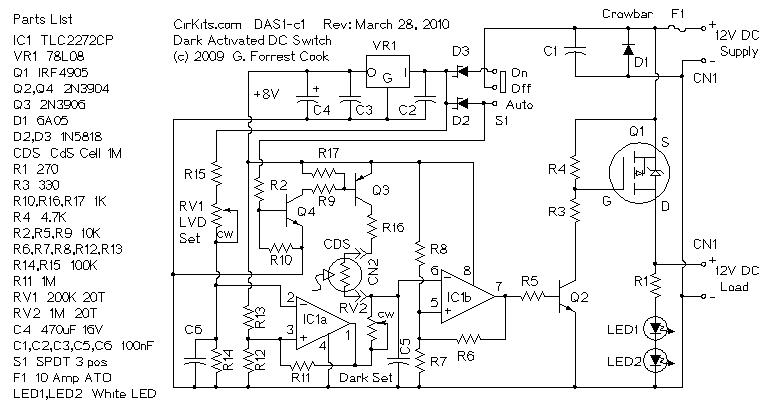

    12VDC power is supplied to the DAS1 circuit via connector CN1. Diode D1 protects the circuit from reverse supply voltage, if the supply is reversed, fuse F1 blows. Power is routed to the control circuitry through switch S1 and schottky diodes D2 or D3. With the switch in the Auto position, power is sent to the CdS cell via the level changing circuitry consisting of transistors Q4 and Q3. When the switch is in the On position, Q4 and Q3 are off, simulating a dark condition on the CdS cell.
    Regulator VR1 lowers the supply voltage to a constant 8V for powering the control circuitry. Op-Amp IC1a is wired as a voltage comparator circuit, it functions as the Low Voltage Disconnect. When the supply voltage is above the LVD setpoint, the sense line on IC1a pin 2 is above the reference voltage on IC1a pin 3 and the output of IC1a is low. When the supply voltage drops below the LVD setpoint, the output of IC1a goes high, disabling the light sensor circuit and shutting off power to the load. Resistor R11 provides hysteresis action on the LVD circuit, preventing oscillation when the supply voltage is near the LVD setpoint. Variable resistor RV1 adjusts the low voltage disconnect setpoint.

    Op-amp IC1b is wired as another voltage comparator circuit, it measures the light level on pin 6. Bright light on the CdS cell cause the voltage on pin 6 to rise above the reference voltage on IC1b pin 5, this in turn causes the IC1b output on pin 7 to go low. Low light on the CdS sensor causes the voltage on IC1b pin 6 to go below the pin 5 reference voltage and the IC1b output will go high. Resistor R6 provides hysteresis to the light sensor circuit, preventing light flicker at dusk and dawn. Variable resistor RV2 adjusts the dark turn-on point.

    The IC1b output signal is sent to transistor Q1, which pulls the gate of power MOSFET Q1 down (on) or up (off). Q1 controls the flow of current from the supply to the external load pins on CN1. The two white LEDs are connected across the external load pins through current limiting resistor R1.

    Use

    Connect the battery to the DAS1 battery terminals. Connect the external lamps to the DAS1 load terminals. The light sensitive CDS cell can either be screwed directly to the two CDS screw terminals on the DAS1 circuit board, or remotely mounted. The CDS cell should be placed in a location that is not affected by the onboard LEDs or any external lamps. If the CDS cell is to be remotely mounted more than 5 feet from the DAS1 circuit board, two conductor shielded cable should be used. The remote CDS sensor should connect to the DAS1 via the two internal wires and the shield conductor should be connected to the DAS1 load - screw, the shield should be left floating on the CDS sensor end.
    When the DAS1 switch is put in the ON position, the two onboard white LEDs and the external lamp(s) will light up. When the DAS1 switch is put in the AUTO position, the two onboard LEDs and the external lamp(s) will light up if the CDS sensor is in the dark.

    The DAS1 can also be used as an automatic 10 amp low voltage disconnect (LVD) switch by simply placing the circuit in ON mode.

    If the DAS1 is operated from battery power, the onboard and external lamps will turn off as soon as the battery voltage drops below the LVD setpoint. The low voltage disconnect function works for both ON and AUTO settings.
