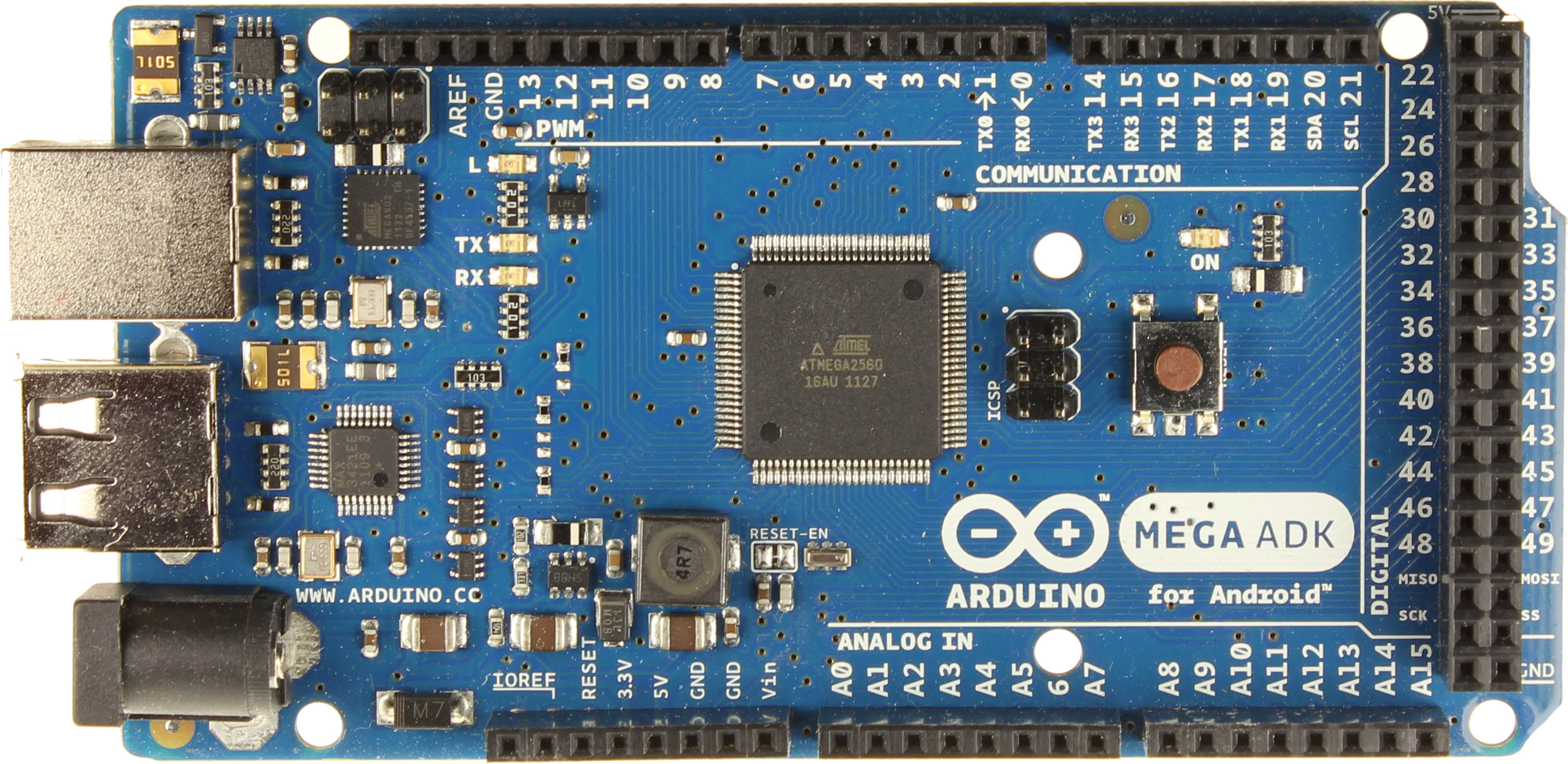

Arduino Mega ADK Pinout

Konusu 'Pic Uygulama Ve Devreleri' forumundadır ve uydudoktoru tarafından 27 Mart 2013 başlatılmıştır.

  1. uydudoktoru
    Offline

    uydudoktoru Aktif Üye Yönetici Yönetici

    Katılım:
    13 Haziran 2009
    Mesajlar:
    2.142
    Ödül Puanları:
    38
    [​IMG]

    Input and Output
    Each of the 50 digital pins on the Arduino Mega ADK can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms.
    In addition, some pins have specialized functions:

    Serial: 0 (RX) and 1 (TX);
    Serial 1: 19 (RX) and 18 (TX);
    Serial 2: 17 (RX) and 16 (TX);
    Serial 3: 15 (RX) and 14 (TX).
    Used to receive (RX) and transmit (TX) TTL serial data. Pins 0 and 1 are also connected to the corresponding pins of the ATmega8U2 USB-to-TTL Serial chip.
    External Interrupts: 2 (interrupt 0), 3 (interrupt 1), 18 (interrupt 5), 19 (interrupt 4), 20 (interrupt 3), and 21 (interrupt 2). These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value. See the attachInterrupt() function for details.
    PWM: 2 to 13 and 44 to 46. Provide 8-bit PWM output with the analogWrite() function.
    SPI: 50 (MISO), 51 (MOSI), 52 (SCK), 53 (SS). These pins support SPI communication using the SPI library. The SPI pins are also broken out on the ICSP header, which is physically compatible with the Uno, Duemilanove and Diecimila.
    USB Host: MAX3421E. The MAX3421E comunicate with Arduino with the SPI bus. So it uses the following pins:
    Digital: 7 (RST), 50 (MISO), 51 (MOSI), 52 (SCK).
    NB: Please do not use Digital pin 7 as input or output because is used in the comunication with MAX3421E
    Non broken out on headers: PJ3 (GP_MAX), PJ6 (INT_MAX), PH7 (SS).
    LED: 13. There is a built-in LED connected to digital pin 13. When the pin is HIGH value, the LED is on, when the pin is LOW, it’s off.
    TWI: 20 (SDA) and 21 (SCL). Support TWI communication using the Wire library. Note that these pins are not in the same location as the TWI pins on the Duemilanove or Diecimila.
    The ADK has 16 analog inputs, each of which provide 10 bits of resolution (i.e. 1024 different values). By default they measure from ground to 5 volts, though is it possible to change the upper end of their range using the AREF pin and analogReference() function.
    There are a couple of other pins on the board:
    AREF. Reference voltage for the analog inputs. Used with analogReference().
    Reset. Bring this line LOW to reset the microcontroller. Typically used to add a reset button to shields which block the one on the board.
