ATMEGA128-16AU programlama (JTAG)

guclusat

Tanınmış Üye
Süper Moderatör
jaf repair solution tested 100%
This old procudre for the ufs when atmaga programe damage hope fully this wrok to reapir jaf also for more help i make this thread beacuse new version 1.98.65 damages a lot of jaf box

make cabel like this



romover this chip



make point like this

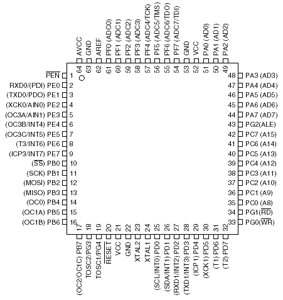

atmagea pinout for programing



use these setting for the atmaga








ATMEGA128-16AU programlama (JTAG)

http://www.mediafire.com/?8y236xivdru8rk8

Repair JAF BOX IC .rar


Eklentiler

  • ATMEGA128-16AU programlama (JTAG) Sınırsız Paylaşımın Adresi.zip
    1,3 MB · Görüntüleme: 38
Son düzenleyen: Moderatör:
ATm128-TB1.2 ATmega128 TinyBoard Vers. 1.2

Category: Development Board, AVR Microcontroller, ATmega128, ATmega
Keywords: Microcontroller, Development Board, Prototype Board, ATmega Board, AVR ATmega128-16AU, ATmega128-16AI, ATmega128 Board


ATmega128 Development Board / Prototype Board with ATmega128-16AI / ATmega128-16AU (16 MHz) with ISP Header, ATmega128 Board, ATmega Board


  • full motherboard / prototype board for ATmega128
  • same dimensions as Vers. 1.1 but with additional ISP header
  • led indicates programming mode
  • lines on right header are switched off automatically when in programming mode
    (prohibits "shortages" during programming with the rest of circuitry)
  • 100% pin compatible with Vers. 1.1
  • super thin only 34mm x 40mm x 8mm (mini module)
  • all pins are available on headers (2,54mm-/0,1" pitch) 2x15pins each
  • high computing power
  • easy to use: just connect to power supply (+5V) and program device
  • 2 crystals: 16 MHz system clock, 32.768 kHz asynchron timer/counter0
  • separate grounds: analog and digital
  • large continues ground plane / reference plane for improved signal integrity and shielding
  • board fits in 2.54mm pitch prototype PCB

fully assembled board includes:

  • ATmega128-16AI / ATmega128-16AU (-40 bis +85°C), X1 crystal 16 MHz, X2 crystal 32.768 kHz (for asynchron timer)
  • header layout, schematics, programming tutorial
female connectors 2 pieces (2x15 pins) are also available
options:

  • ATmega128L option - low voltage version (2.7V-5.5V) with ATmega128L-8AI / ATmega128L-8AU and 8 MHz crystal
  • AT90CAN128 option - AT90CAN128-16AI / AT90CAN128-16AU with CAN Controller - V2.0A and V2.0B
    (CAN 2.0A, CAN 2.0B)
  • ATmega128-16 with 14.7456 MHZ crystal for serial communication (USART1 and USART2) without baud rate error
ATmega128 TinyBoard Vers. 1.2 - ISP Header

Board Headers

board fits in 2,54mm pitch prototype PCB
Features Atmel 8Bit AVR-Flash Microcontroller, AVR 8-Bit RISC


Pinout:
ATmega128, ATmega128-16AU
ATmega1281, ATmega1281-16AU
ATmega2561, ATmega2561-16AU


ATmega128-16AI / ATmega128-16AU (Pb free, ROHS) / ATmega1281 features
ATmega2561-16AI / ATmega2561-16AU (Pb free, ROHS) features



  • 128KB FLASH for ATmega128
  • 256KB FLASH for ATmega2561
  • 4 KB SRAM (internal RAM)
  • 4 KB EEPROM
  • 64-pin Version
  • 53 I/O pins
  • hardware multiplier
  • programming lock for software security
  • SPI Interface for In-System Programming
  • real time counter with separate oscillator
  • 8-channel, 10-bit ADC:
    - 8 single-ended channels
    - 7 differential channels
    - 2 differential channels with programmable gain at 1x, 10x, or 200x
  • dual programmable serial USARTs (2x UART)
  • Master/Slave SPI serial interface
  • 2x 8bit timer, 2x 16bit timer
  • 16 MHz RISC

AVR ATmega128 datasheet (pdf)

AVR ATmega2561 datasheet (pdf)



Son düzenleme:
ATm128-UC-TB ATmega128 USB TinyBoard

]ATmega128 USB Development Board / Prototype Board with ATmega128-16AI / ATmega128-16AU (16 MHz) with ISP Header, ATmega Board
ATmega128 Board with USB serial converter




  • full motherboard / prototype board for ATmega128
  • led indicates programming mode
  • lines on right header are switched off automatically when in programming mode
    (prohibits "shortages" during programming with the rest of circuitry)
  • 100% pin compatible with Vers. 1.1 and Vers. 1.2 ATmega128 TinyBoard
  • small dimensions 34mm x 47mm (mini module)
  • all pins are available on headers (2,54mm-/0,1" pitch) 2x15pins each
  • high computing power
  • easy to use: just connect to power supply (+5V) and program device
  • 2 crystals: 16 MHz system clock, 32.768 kHz asynchron timer/counter0
  • separate grounds: analog and digital
  • large continues ground plane / reference plane for improved signal integrity and shielding
  • USB-UART-Bridge Silicon Labs CP2102 (SiLabs CP2102)
    USB2COM (USB2SERIAL) / COM2USB (SERIAL2USB) / USB2 Full Speed
    converter onboard for COM1 (serial to USB converter for COM1 / USART1, second UART)
    driver support: Windows98/2000/XP, Linux, MacOS
  • device can be powered from USB line (jumper)
  • ISP and JTAG header

  • fully assembled board includes:


  • ATmega128-16AI / ATmega128-16AU (-40 bis +85°C), X1 crystal 16 MHz, X2 crystal 32.768 kHz (for asynchron timer)

  • header layout, schematics, programming tutorial, USB driver

  • Mini-USB cable

  • female connectors 2 pieces (2x15 pins) are also available
options:

  • ATmega128-16 with 14.7456 MHZ crystal for serial communication (USART1 and USART2) without baud rate error

Board Headers

board fits in 2,54mm pitch prototype PCB
CP2102 USB-UART Bridge VCP device drivers

Windows 2000 / XP: CP2102 VCP device driver Windows 2000 / XP
Native CP210x USB Driver (Windows): CP210x_Win_v4.28a.zip
Native CP210x USB Driver (MacOS-X): CP210x_MacOSX_v1.00e.zip
Linux:
Native CP210x USB Driver (RedHat8)
Note: Linux Kernel 2.6 includes support for CP210x devices, no additional driver needed
CP210x_RedHat8_v1.1.tar.gz
Native CP210x USB Driver (Linux Source Code)
Note: Linux Kernel 2.6 includes support for CP210x devices, no additional driver needed
CP210x_Linux_src_v1.1.zip
Features Atmel 8Bit AVR-Flash Microcontroller, AVR 8-Bit RISC

Pinout:
ATmega128, ATmega128-16AU
ATmega1281, ATmega1281-16AU
ATmega2561, ATmega2561-16AU
[/h]

ATmega128-16AI / ATmega128-16AU (Pb free, ROHS) / ATmega1281 features
ATmega2561-16AI / ATmega2561-16AU (Pb free, ROHS) features

  • 128KB FLASH for ATmega128
  • 256KB FLASH for ATmega2561
  • 4 KB SRAM (internal RAM)
  • 4 KB EEPROM
  • 64-pin Version
  • 53 I/O pins
  • hardware multiplier
  • programming lock for software security
  • SPI Interface for In-System Programming
  • real time counter with separate oscillator
  • 8-channel, 10-bit ADC:
    - 8 single-ended channels
    - 7 differential channels
    - 2 differential channels with programmable gain at 1x, 10x, or 200x
  • dual programmable serial USARTs (2x UART)
  • Master/Slave SPI serial interface
  • 2x 8bit timer, 2x 16bit timer
  • 16 MHz RISC

AVR ATmega128 datasheet (pdf)

AVR ATmega2561 datasheet (pdf)

Son düzenleyen: Moderatör:
AVR-ISP AVR ISP Programmer for parallel port, AVR In-System-Programmer


  • used for progamming of ATmega128 TinyBoard or any other ISP programmable controller from Atmel
  • 100% compatible with Atmel STK200/300
  • works with:


  • long ribbon cable
  • modern SMD technology
  • integrated bus driver, target can be left connected to ISP connector while device is running
    ISP lines are automatically switched through when in programming mode
see AVR-HOWTO for programming target device
AVR ISP header pinout

Selection of ISP Programming Software




  • Downloading code to the target processor, e.g. AVR ATmega128 microcontroller, via PonyProg (WINDOWS 2000 / XP)
Configuration and programming instructions for ATmega128 Development Board “TinyBoard” via PonyProg:
STEP 1:
For ATmega128 TinyBoard V1.1 connect “HEADER A” to ISP programmer as shown:

For ATmega128 TinyBoard V1.2 connect ISP header from board with ISP programmer:

STEP 2: Download PonyProg from PonyProg-download and install PonyProg.
STEP 3: Connect programmer to parallel port of your PC.
STEP 4: Configure ISP programmer (dongle) by “Setup->Interface Setup”, use the following settings.



STEP 5: Verify presence of ISP programmer by using “Probe”.
STEP 6: Do “Setup -> Calibration”
STEP 7: Select “Device->AVR Micro->ATmega128”
STEP 8: Load your program file *.hex. using “File-> Open Device File”.
SETP 9: Now you can program your device by using “Command -> Write all”.

You can change pre-configured settings (fuse bits) by “Command -> Security and Configuration Bits”.

  • Downloading code to the target processor, e.g. AVR ATmega128, ATmega1280 microcontroller, via avrdude (LINUX, Windows 2000 / XP)

    Avrdude is an open-source program for download / upload code to AVR microcontroller flash and eeprom.
    Download code from avrdude-download.
    The example is chown as Windows version with Windows parallel port declaration "-P lpt1".
    For Linux use "-P /dev/parport0" instead.
  • avrdude (Version 5.x)

Note: You now have to use "flashfile.bin" instead of "flashfile.hex" unlike in prior versions (4.x).

avrdude: Version 5.1

>avrdude -p atmega128 -c stk200 -P lpt1 -U flash:w:demo.bin:r

avrdude: AVR device initialized and ready to accept instructions

Reading | ################################################## | 100% 0.01s

avrdude: Device signature = 0x1e9702
avrdude: NOTE: FLASH memory has been specified, an erase cycle will be performed
To disable this feature, specify the -D option.
avrdude: erasing chip
avrdude: reading input file "demo.bin"
avrdude: writing flash (12058 bytes):

Writing | ################################################## | 100% 8.07s

avrdude: 12058 bytes of flash written
avrdude: verifying flash memory against demo.bin:
avrdude: load data flash data from input file demo.bin:
avrdude: input file demo.bin contains 12058 bytes
avrdude: reading on-chip flash data:

Reading | ################################################## | 100% 7.81s

avrdude: verifying ...
avrdude: 12058 bytes of flash verified

avrdude: safemode: Fuses OK

avrdude done. Thank you.

  • Special notes for ISP-programming of ATmega2560 / ATmega2561, i.e. upload code to flash, using avrdude

    Because AVR ATmega2560 and ATmega2561 devices are not supported by avrdude by now (Version WinAVR-20060125) use ATmega1280 mode instead:​
    C:\WinAVR\examples\ATmega256xdemo>avrdude -p atmega1280 -c stk200 -P lpt1 -U flash:w:demo.bin:r

    avrdude: AVR device initialized and ready to accept instructions

    Reading | ################################################## | 100% 0.00s

    avrdude: Device signature = 0x1e9801
    avrdude: NOTE: FLASH memory has been specified, an erase cycle will be performed

    To disable this feature, specify the -D option.
    avrdude: erasing chip
    avrdude: reading input file "demo.bin"
    avrdude: writing flash (486 bytes):

    Writing | ################################################## | 100% 0.17s

    avrdude: 486 bytes of flash written
    avrdude: verifying flash memory against demo.bin:
    avrdude: load data flash data from input file demo.bin:
    avrdude: input file demo.bin contains 486 bytes
    avrdude: reading on-chip flash data:

    Reading | ################################################## | 100% 0.16s

    avrdude: verifying ...
    avrdude: 486 bytes of flash verified

    avrdude: safemode: Fuses OK

    avrdude done. Thank you.​
  • avrdude version (4.x) >avrdude -p atmega128 -c stk200 -P lpt1 -e -i mmega128.hex
    or just
    >avrdude -p m128 -c stk200 -e -i mmega128.hex
avrdude: AVR device initialized and ready to accept instructions
avrdude: Device signature = 0x1e9702
avrdude: erasing chip
avrdude: done.
avrdude: reading input file "f:\mmega128.hex"
avrdude: input file f:\mmega128.hex auto detected as Intel Hex
avrdude: writing flash (130100 bytes):
130099
avrdude: 130100 bytes of flash written
avrdude: verifying flash memory against f:\mmega128.hex:
avrdude: reading on-chip flash data:
130099
avrdude: verifying ...
avrdude: 130100 bytes of flash verified

avrdude done. Thank you.

  • Downloading code to the target processor, e.g. AVR ATmega128 microcontroller, via uisp (Linux)

    UISP is a tool for AVR (and AT89S) microcontrollers which can interface to many hardware in-system programmers.
    Download code from uisp-download.
>uisp -dprog=stk200 --upload if=mmega128.hex --verify
Features Atmel 8Bit AVR-Flash Microcontroller, AVR 8-Bit RISC


Pinout:
ATmega128, ATmega128-16AU
ATmega1281, ATmega1281-16AU
ATmega2561, ATmega2561-16AU


ATmega128-16AI / ATmega128-16AU (Pb free, ROHS) / ATmega1281 features
ATmega2561-16AI / ATmega2561-16AU (Pb free, ROHS) features



  • 128KB FLASH for ATmega128
  • 256KB FLASH for ATmega2561
  • 4 KB SRAM (internal RAM)
  • 4 KB EEPROM
  • 64-pin Version
  • 53 I/O pins
  • hardware multiplier
  • programming lock for software security
  • SPI Interface for In-System Programming
  • real time counter with separate oscillator
  • 8-channel, 10-bit ADC:
    - 8 single-ended channels
    - 7 differential channels
    - 2 differential channels with programmable gain at 1x, 10x, or 200x
  • dual programmable serial USARTs (2x UART)
  • Master/Slave SPI serial interface
  • 2x 8bit timer, 2x 16bit timer
  • 16 MHz RISC


Geri
Yukarı
