    The Ex-Link (serial) cable for A and B series only


    • Solder yourself ( or buy ) an Ex-Link serial cable to connect to your Samsung TV.
    If you don`t have com port on your PC, you can buy usb to RS232 device from ebay and you get virtual com port over USB.
    [​IMG]

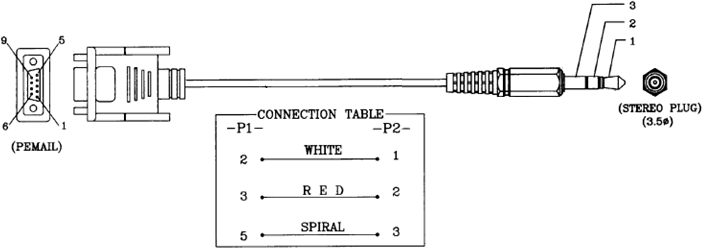

    See here for the Serial Cable specs. You can ignore the rest of the information posted there, as it is not applicable for the more recent Samsung devices.
    Configure your TV for Debug-Mode


    • Enter Service Menu ( quickly push [INFO] [MENU] [MUTE] [POWER] on your remote control )
    • Change setting for your RS232C interface to "debug" ( Control -> Sub Option -> RS-232 Jack -> [ Debug | UART | Logic ] )
    Debug mode at older TV's like B530 series


    • Enter Service Menu
    • Enter "Advanced" menu. To activate `Advanced` menu need to type '0000'
    • Advanced => ADJUST => Debug mode [OFF][Debug smart][Debug runtime]
    Start the terminal

    Terminal Connection Parameters


    • Use following connection parameters with your terminal-client ( e.g. Kermit, Hyper Therminal or ZOC Terminal ):
    Baudrate: 115200
    Data bits: 8
    Parity: none
    Stop bits: 1
    Flow Control: none
    For Older models (like B530), you can try lower baudrates (like 9600 bps)
    Linux PC

    On a Linux PC, install 'cu' (call up) tool from the uucp package and run
    cu -l /dev/ttyUSB0 -s 115200Windows PC

    On a Windows PC, use Hyper Terminal or Putty.

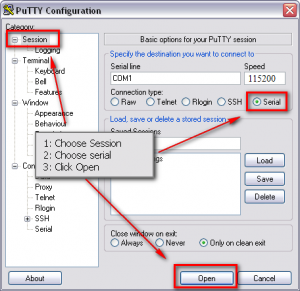

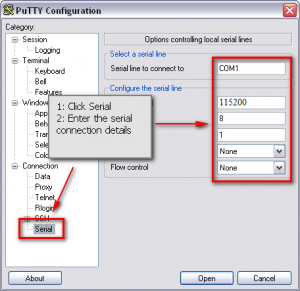

    After you have started PuTTY, follow the steps in the screen shots below.

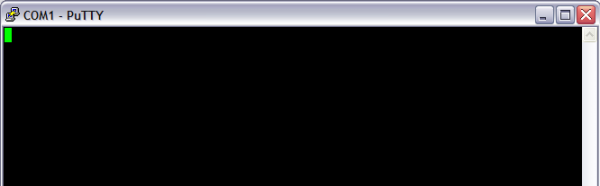

    [​IMG][​IMG] [​IMG]

    Enabling Serial Input


    • Switch on your TV ...
      If you did everything right and everything works as expected, then you should see the boot-log on your terminal.
    • Enter "debug" at the invisible prompt ... to enable your serial console.
      You should see something like below with each keystroke
    [SERIAL INPUT MANAGE] 1-th ENABLE Magic serial input match!
    [SERIAL INPUT MANAGE] 2-th ENABLE Magic serial input match!
    [SERIAL INPUT MANAGE] 3-th ENABLE Magic serial input match!
    [SERIAL INPUT MANAGE] 4-th ENABLE Magic serial input match!
    [SERIAL INPUT MANAGE] 5-th ENABLE Magic serial input match!
    [SERIAL INPUT MANAGE] serial input ENABLE!!!!!


    Debug Menu (On B series CI+ models Too)


    • When you enter '1198282' numbers twice after debug string (each time confirm with ENTER), you will see TOP Debug Menu like that:
    ====================================
    [ TOP Debug Menu]
    ------------------------------------
    1 : SubSystem Print On/Off
    2 : Platform Print Setting
    3 : TD Print Setting
    4 : Performance Print Setting
    5 : Sdal Print Setting
    6 : Sdal Trace Setting
    10 : Factory Debug
    11 : TD Debug
    12 : SubSystem DBG
    20 : Performance File Write
    21 : Louvre Print Setting
    22 : JavaMW Print Setting
    30 : Auto Lock DBG
    ------------------------------------
    50 : ROSE Debug
    60 : MediaLink Debug
    70 : Jade Debug
    ====================================
    99 : Exit
    ====================================
    DBG> :


    Activating the serial console from Debug Menu


    • Enter TOP Debug Menu
    • Than enter menu numbers 11 : TD Debug -> 0x04 : spI Debug -> 68 : Shell
    will let you drop linux shell on CI devices. Is could true for CI+ devices too. But you cannot use characters on shell of CI+ devices, because kernel filters them, only numbers and enter allowed on CI+ devices...
    This approach will do not kill exeDSP. So you don't needed to stop watchdog after dropping linux shell.
    Activating the serial console (old way)


    • Now you need to be fast ...
      • hit CTRL-C, which stops the exeDSP binary
      • immediately after that enter ( you have ca. 3 seconds ... I suggest you cut&paste this command ):
    /mtd_boot/MicomCtrl 23
    This now prevents your LED/LCD to stop and you have a command prompt of the TV-Console.

    --Dynamic1969 16:17, 3 October 2009 (UTC)
