FULL PROJECTS - Microcontroller Programming (all posts here)

Konusu 'Pic Uygulama Ve Devreleri' forumundadır ve guclusat tarafından 21 Kasım 2009 başlatılmıştır.

  1. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.910
    Ödül Puanları:
    48
    Microcontroller Programming
    Post an Programmer here too!

    PIC-Brenner8 [USB] [for all PIC series]
    [​IMG]
    Features:

    • all most devices supporteds
    • USB programming
    Downloads:
    Get circuit, layout (EAGLE Files) and firmware in website:
    PIC-Projekte: Brenner8


    PIC-PG2 (know as PICBurner or JDM Extreme!) [SERIAL] [for all PIC series]
    [​IMG]
    Features:

    • easy to make
    • low cost
    • all most devices supporteds
    • serial programming
    • work with prograns: winpicpgm, WinPic800, icprog, etc...
    Downloads:
    Eagle files (layout + circuit): RapidShare: 1-CLICK Web hosting - Easy Filehosting
    Manual: RapidShare: 1-CLICK Web hosting - Easy Filehosting
    This project is result of projects:
    JDM Programmer: http://www.jdm.homepage.dk
    Pic-pg2: PIC-PG2 PIC SERIAL PORT PROGRAMMER FOR 8/18/28/40PIN PIC DEVICES I2C EEPROMS

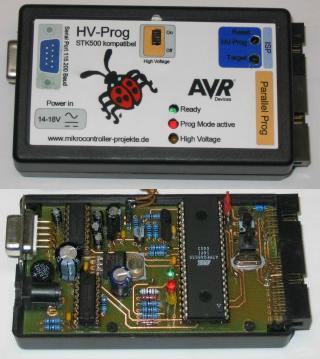

    HVProg [SERIAL] [for AVR]
    [​IMG]
    Features:

    • Compatible with AvrStudio
    • Supports all AVR Controllers
    • Parallel and serial High-Voltage-Programming
    • Small and easy layout with only a few parts
    • STK500 protocol
    Downloads:
    Get circuit, layout (EAGLE Files) and firmware in website:
    Website: der-Hammer: HVProg

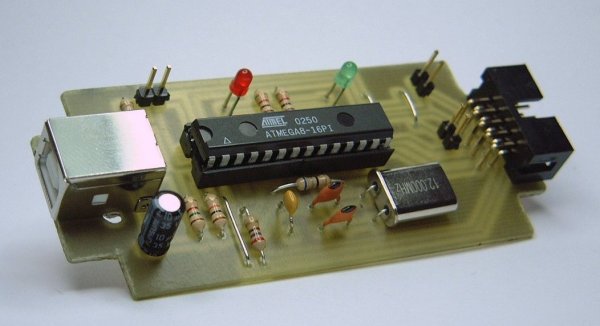

    USBASP(AVR DUDE) [USB] [for Atmel AVR]
    [​IMG]
    Downloads:
    Get circuit, layout (EAGLE Files) and firmware in website:
    Website: fischl.de - USBasp - USB programmer for Atmel AVR controllers


    AVR ISP 2 clone [SERIAL] [for AVR]
    Embedded Projects

  2. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.910
    Ödül Puanları:
    48
    This software supports programming of Atmel microcontrollers 89Sxx ('51), ATtiny, ATmega and 90Sxx (AVR). It can erase built-in Flash and EEPROM memories as well as read and program them. ISP Programmer also supports serial Atmel DataFlash memories. Communication with devices is made serially in system (ISP - In-System Programming) without the need to pull the chip out of the socket or desolder it.

    Full source code now available on SourceForge(link is external).

    The microcontroller you want to program needs to be connected to the printer port (LPT) of the computer (directly with wires, without STROBE signal), according to this list:

    Microcontroller LPT port LPT port
    signal signal pin number

    [STROBE] ---- STROBE 1
    RESET ---- AUTOLF 14
    MOSI ---- INIT 16
    SCK ---- SLCT-IN 17
    MISO ---- ACK 10
    GND ---- GND 25


    STROBE signal connected to pin 1 of LPT port is used to control enabling of 3-state buffers of programming serial bus (SCK,MISO,MOSI). Using it is optional. But in case of connecting LPT port directly to microcontroller pins, you should use the same logic levels (ground / 5V) as LPT port in host and verify that programming would not brake the normal operation of the peripherials connected to this microcontroller. For example programming signals should not be connected to the enable pin of the LCD.

    Below you can see the example schematic of the programming cable using 3-state buffer:


    [​IMG]

    Connection of the programming cable to the microcontroller pins depends on the type of MCU, see the documentation at the Atmel's website(link is external).

    With the ISP Programmer you are able to use any programming cable pinout, including AT-Prog, SI-Prog, UISP, STK200/300 and AEC ISP. You can choose any pins of the LPT port for programming signals, as well as define arbitrary RESET signal level.

    WARNING: In case of programming Atmel DataFlash memories, RESET signal defined in pinout must be connected with ChipSelect (/CS) line of the chip.

    Supported microcontrollers:

    • AT89S2051, AT89S4051, AT89S51, AT89LS51, AT89S52, AT89LS52, AT89S53, AT89S8252, AT89S8253
    • AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4414, AT90S4433, AT90S4434, AT90S8515, AT90S8535, AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2, AT90PWM3, AT90USB646, AT90USB647, AT90USB82, AT90USB162, AT90USB1286, AT90USB1287
    • ATtiny12, ATtiny13, ATtiny15, ATtiny24, ATtiny25, ATtiny26, ATtiny44, ATtiny45, ATtiny84, ATtiny85, ATtiny261, ATtiny461, ATtiny861, ATtiny2313
    • ATmega48, ATmega48P, ATmega8, ATmega88, ATmega88P, ATmega8515, ATmega8535, ATmega16, ATmega161, ATmega162, ATmega163, ATmega164P, ATmega165P, ATmega168, ATmega168P, ATmega169, ATmega32, ATmega323, ATmega324P, ATmega325, ATmega328P, ATmega329, ATmega64, ATmega128, ATmega640, ATmega644, ATmega644P, ATmega645, ATmega649, ATmega1280, ATmega1281, ATmega1284P, ATmega2560, ATmega2561, ATmega3250, ATmega3290, ATmega6450, ATmega6490
    Supported serial Flash memories:

    • AT45DB011B, AT45DB011D, AT45DB021B, AT45DB021D, AT45DB041B, AT45DB041D, AT45DB081B, AT45DB081D, AT45DB161B, AT45DB161D, AT45DB321B, AT45DB321C, AT45DB321D, AT45DB642D, AT45CS1282
    • AT25DF021, AT25DF041A, AT25DF081, AT26DF081, AT25DF161, AT26DF161, AT25DF321, AT25DF641, AT25F512B, AT25FS010, AT26F004
    All the settings of the ISP Programmer are held in system registry, you can also save them into the text file.

    This software runs in Windows 95, 98, Me, NT 4.0, 2000, XP, 2003, Vista and Windows 7 (32-bit and 64-bit versions).

    The screenshots of ISP Programmer running in Windows 7 64-bit:


    [​IMG]


    [​IMG]


    [​IMG]

    Son düzenleme: 11 Mart 2017
