Karışık Ekolayzer Devre Şemaları

Konusu 'Elektronik Devreler' forumundadır ve guclusat tarafından 26 Kasım 2009 başlatılmıştır.

  1. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.757
    Ödül Puanları:
    48

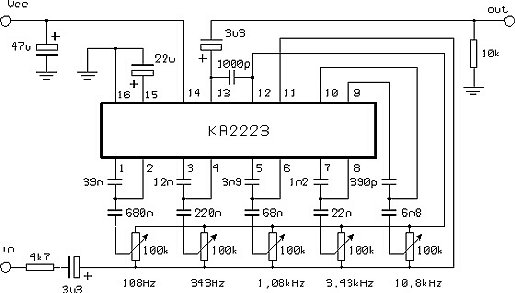

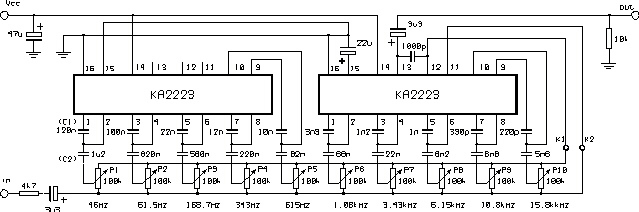

  2. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.757
    Ödül Puanları:
    48
    5 Band Grafik Ekolayzır LA3600 Devre Şeması


  3. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.757
    Ödül Puanları:
    48
    5 Band Graphic Equalizer


    Part List

    R1-4-37= 330Kohms
    R34= 15Mohms
    C12= 4.7nF 100V
    R2-7= 2.2Kohms
    R35-38= 220 ohms 1W
    C13= 1.5nF 100V
    R3= 120Kohms
    R36= 100 ohms
    C14= 470pF 100V
    R5-6= 6.8Kohms
    C1-3= 1uF 40V
    C15= 68pF 100V
    R8....12= 1.8Kohms
    C2= 68pF 100V
    C16-19= 100nF 100V
    R13....15= 200Kohms
    C4= 220uF 63V
    C17-20= 470uF 40V
    R16= 180Kohms
    C5= 1uF 100V
    C18= 4.7uF 63V
    R17= 150Kohms
    C6= 220nF 100V
    RV1....5= 50Kohms Lin.
    R18= 1.5Kohms
    C7= 47nF 100V
    Q1.....7= BC550C
    R19....22= 1Kohms
    C8= 15nF 100V
    S1= 2X2 SW
    R23....27= 220Kohms
    C9= 5.6nF 100V .
    R28....32= 15Kohms
    C10= 47nF 100V .
    R33= 10Kohms
    C11= 15nF 100V .

  4. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.757
    Ödül Puanları:
    48
    10 Band Graphic Equalizer Circuit for Home Theater Applications


    The proposed 10 band graphic equalizer circuit can be used in conjunction with any existing home theater system to get an enhanced 10 stage audio processing.
    The unit is quite simple to use. Al one has to do is feed the TV or PC audio input to this circuit and hook the output with the existing home theater amplifier.

    Next, it would eb just a matter of adjusting the given 10 band controls and enjoying the vastly improved sound quality.
    You would be able to tailor the sound as per your preferred tastes.

    As an example, the midrange controls of the equalizer can be adjusted to highlight dialogue or in order to reduce the harshness over a particular range of voice audio.

    Or perhaps you can roll off the high pitched even to further extents in case you wished, or simply heightened the bas boost to your liking.

    Typically the controls would be able to provide upto 10dB of boost or cut at nominal center frequencies of 150Hz, 500Hz, 1kHz, 2kHz, 5kHz, 7kHz, 10kHz, 13kHz, 15kHz, 18kHz.

    The circuit also includes a fixed 10kHz low pass filter stage for cancelling out unwanted noise such as hiss or other high frequencies disturbances.

    How the 10 band graphic equalizer circuit functions
    Referring to the given circuit diagram we can see that the associated opamps form the main active component responsible for the required optimizations.
    You will notice that all the 10 stages are identical, it's the difference in the values of the incuded capacitors and the pot which effectively varies the processing leves across the various stages.
    For analyzing the operation we may consider any one of the opamp stages since all of them are identical.
    Here the opamps act as "gyrators" which refers to an opamp circuit which effectively converts a capacitive response to an inductance response.
    Consider an AC voltage source Vi connected to the opamp stage. This pushes a current Ic via the capacitor (C1, C2, C3 etc), which constitutes a proportional voltage across the connected ground resistance (R11, R12, R13 etc).
    This voltage across the ground resistance is conveyed at the ouput of the opamp.
    Due to this the voltage across the feedback resistor (R1, R2, R3 etc) becomes equal to the difference between Vin and Vout which causes current to flow via the feedback resistor and back into the input voltage source!
    A careful assessment of the phases of the above developed current would show that as Ic leads the voltage Vin (as it can expected for any capacitive circuit) the net input current that may be the vector sum of Ic and Io in fact trails the voltage Vi.
    Therefore this implies that in effect, the capacitor C has gotten transformed into a virtual inductor due to the actions of the opamp.
    This transformed "inductance" may be expressed by the following equation:
    L = R1xR2xC
    where R1 = ground resistance, R2 = feedback resistance while C = associated capacitors.
    Here C would be in Farads and the resistances in Ohms.

    The pots effectively vary the input current to the opamps which results in a change in the value of the above explained "inductance", which in turn results in the required music enhancement in the form of treble cuts or bass boosts.


  5. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.757
    Ödül Puanları:
    48

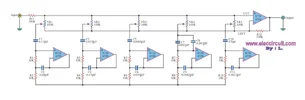

    Graphic equalizer circuit using op-amp 4558-LF353

    This Graphic equalizer circuit using op-amp 4558-LF353 circuit 5 Channels 2 Octave Graphic Equaliser,easy to make equalizer,
    because using IC 4558 or 1458 or LF353 (nice)
    If you are seeking Graphic Equalizer Circuit at can fine decorate the sound of music has full frequency sound section. As a result try out group this circuit before. May don’t be defeated.
    Cut at frequencies of 50Hz, 200HZ,800Hz,3.2kHz and 12kHz.
    Supply voltage may be anything from -15V GND -15V for IC 4558.
    Besides I still lead model PCB try build can be usable easy increasingly sir.
