[Menu]>[Electronic circuit beans collection]>[PLL synthesizing oscillator (1)]

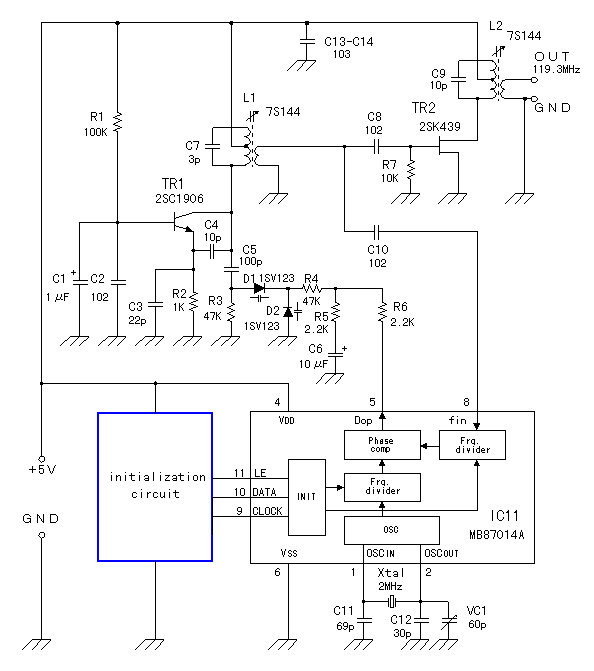

Circuit drawing
of PLL synthesizing oscillator (1)


The initialization circuit block of the top is a clickable image map.
It jumps in the page of the explanation when you click the block.
