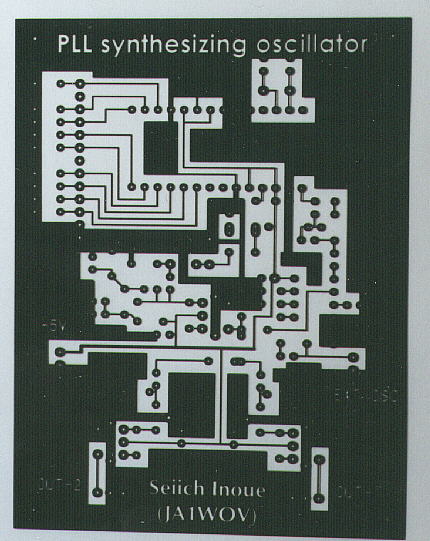

Pattern drawing
of PLL synthesizing oscillator (2)



The circuit which was made this time is using the printed board of 100 x 75 mm.

Because the pattern figure which was shown above is the photograph, it is not the full-size.
The file which was made in Visio can download when you click the following.

pll_msk2.zip
