Mask pattern and Parts mounting drawing
of Step-down converter
(MC34063A)
_dosyalar/line_001.gif){kind=small}
|

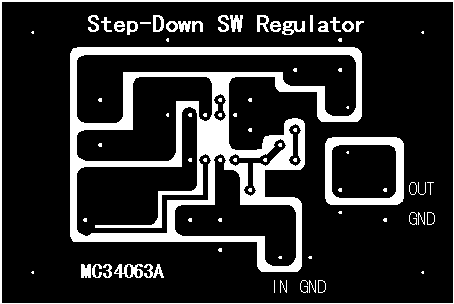

Mask pattern
drawing

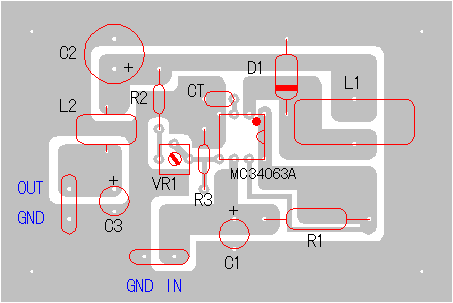

_dosyalar/ckt233_11.gif) You can download the file which was made with the Visio by clicking the following file name. The compressed file is made with the self extract type. sw-reg.zip Three kinds of the mask patterns of Step-Up, Step-Down and Inverting are stored in this file. Parts mounting
drawing _dosyalar/ckt233_12.gif) _dosyalar/blank_1_nv.gif){kind=spacer} |
