The inverting converter
(MC34063A)
_dosyalar/line_001.gif){kind=small}
_dosyalar/ckt234_1.gif) |

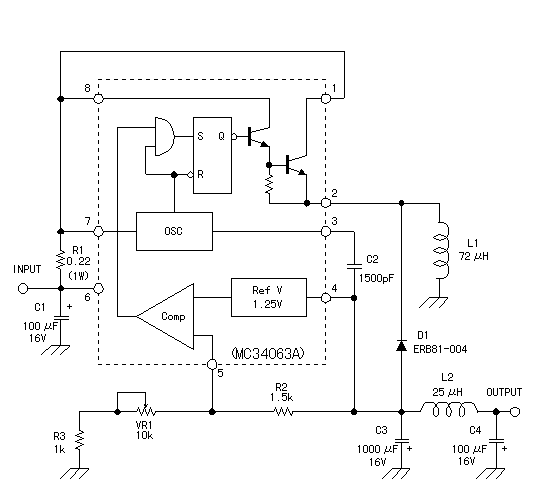

| The inverting converter is the power unit to make the
negative output voltage with the positive input voltage. The converter
which was made this time makes -2V to -10V output voltage with the input
voltage of +12V. Because it makes the limitation value of the input
electric current about 1.3A, the maximum with the input electric power is
about 16W. |
