The step-down converter
(MC34063A)
_dosyalar/line_001.gif){kind=small}
_dosyalar/ckt233_1.gif) |

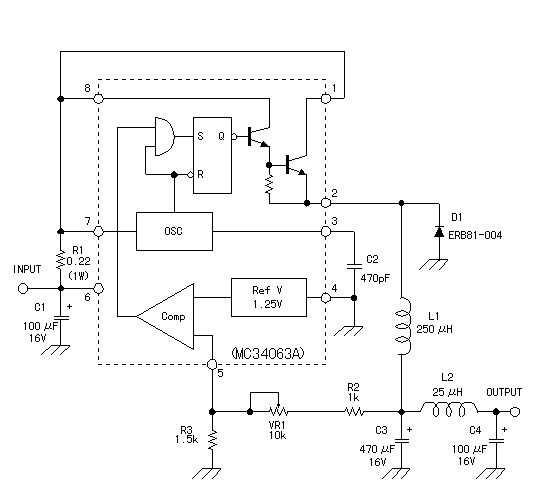

| The step down converter is the power unit to make the
output voltage which is lower than the input voltage. The converter which
was made this time makes +2V to +10V output voltage with the input voltage
of +12V. Because it makes the limitation value of the input electric
current about 1.3A, the maximum with the input electric power is about
16W. |
