The step-up converter
(MC34063A)
_dosyalar/line_001.gif){kind=small}
_dosyalar/ckt232_1.gif) |

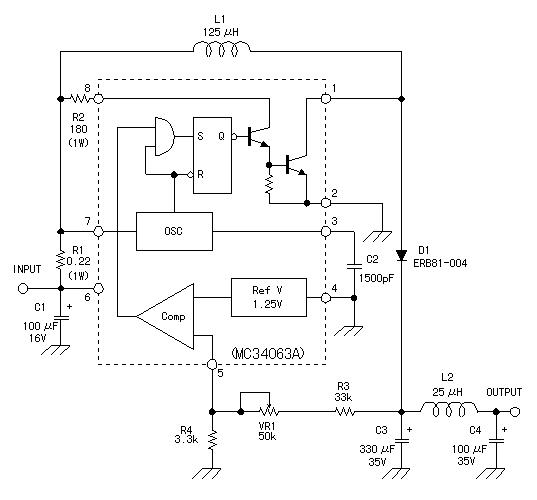

| The step up converter is the power unit to make the
output voltage which is higher than the input voltage. The converter which
was made this time can make stable output voltage with the input voltage
of +12V. The stable output voltage can be controlled in the range of +13V
to +32V. Because it makes the limitation value of the input electric
current about 1.3A, the maximum with the input electric power is about
16W. |
