BFG591, ATV amplifier for 1.2 GHz

Konusu 'Fm Verici Devreleri' forumundadır ve guclusat tarafından 15 Haziran 2014 başlatılmıştır.

  1. guclusat
    Offline

    guclusat Tanınmış Üye Süper Moderatör

    Katılım:
    14 Haziran 2009
    Mesajlar:
    9.756
    Ödül Puanları:
    48
    Some blog entries ago I informed you about my intention to build a 1.2 GHz amplifier with a CLY15 RF mosfet. I ordered 3 of them and did extensive trials. But in the end I had to conclude these devices are to delicate for me. I demolished 2 of them in 5 minutes time and the third provided almost no RF power in my circuit.
    I decided to look for another semiconductor that could help me in the GHz range. Hans, PE1DWA, informed me that a bi-polar transistor, the BFG591 could be interesting. This semiconductor has an Ft of 7 GHz and at 23cm I should easily be able to get 500 mW RF from it. I ordered 5 of them at eBay for about 4 euros.
    Yesterday I built this circuit:

    [​IMG]

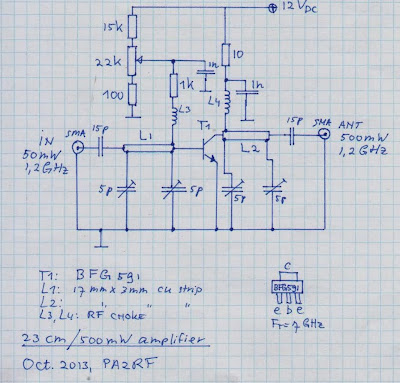

    500 mW 1.2 GHz amplifier with BFG591

    Although I have no device to measure the power at this rather high frequency I think half a Watt is a fair estimate that the circuit is producing.
    With a bi-quad antenna I could get my signal to the local ATV repeater PI6ZTM. It was verified that the videosignal that came from a DVD-player arrived at the local repeater. Although signal strength is not high enough to get a clear picture I recognized the transmitted pictures, and they were even in color.


    [​IMG]

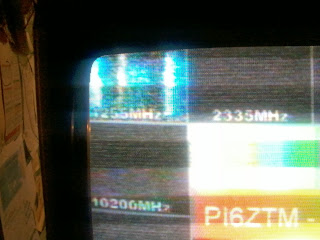

    PI6ZTM repeater picture; in the left hand upper corner my video signal at 1255 MHz

    [​IMG]

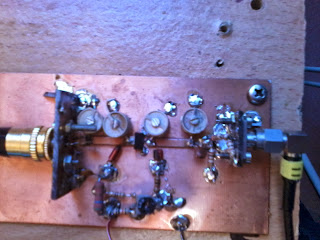

    Snapshot of the 1.2 GHz \ 500mW amplifier

    This is a good step forwards. In the mean time I ordered an MRF284 which is able to provide 5 Watts at 1255 MHz. Another 3 weeks to wait until it arrives from China...

    Note: As you can see, I drawed the circuit by hand. Although I have computer programs to generate a drawing I did it in the old-fashioned way: Pencil & paper. Including scanning this takes me about 10 minutes time. A computer drawing consumes in most cases more than half an hour.
